Machine park, production capabilities
Our technical facilities enable us to fulfill orders involving single machining operations or a combination of multiple manufacturing processes.
We also manufacture mechanical tooling, including stands, fixtures, gauges, 2D and 3D templates, clamping and positioning elements for parts, and workshop aids. The scope of work may include the preparation of engineering documentation, tooling manufacturing, and dimensional inspection.
3- and 5-axis CNC machining

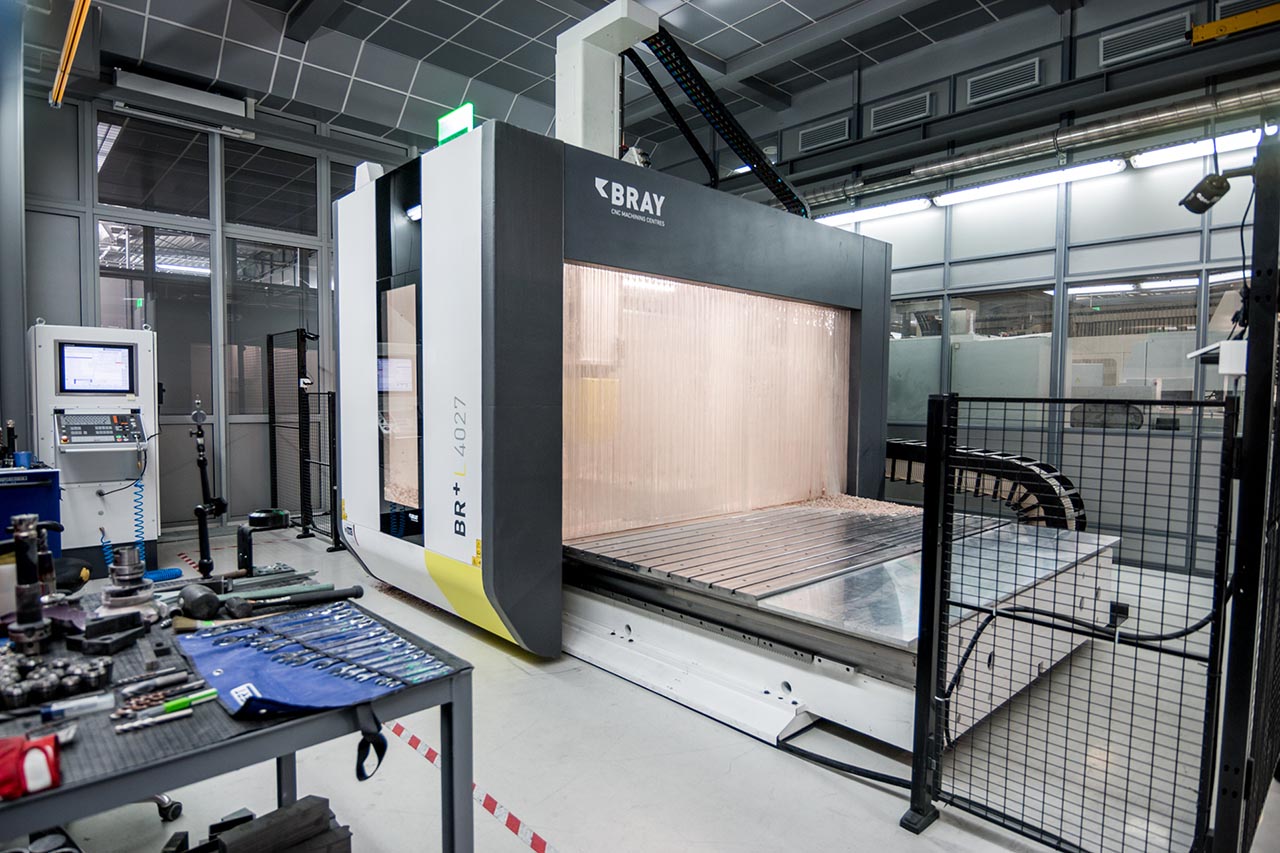

5-axis gantry type machining centre – FC4027 BRAY
Parameters
| Dimensions of the work surface | 4000×2700×1480 mm |
| Max. workpiece dimensions – 3X | 3974×2684×1168 mm |
| Max. workpiece dimensions – 5X | 3166×2086×1060 mm |
| Overall dimensions of the machine | 7070×4870×4810 mm |
| Max. speed for each axis | 60/30/30 m/min |
| Repeatability in the XYZ position | ± 0.01 (± 0.015) mm |
| XYZ positioning accuracy | ± 0.02 (± 0.035) mm/m |

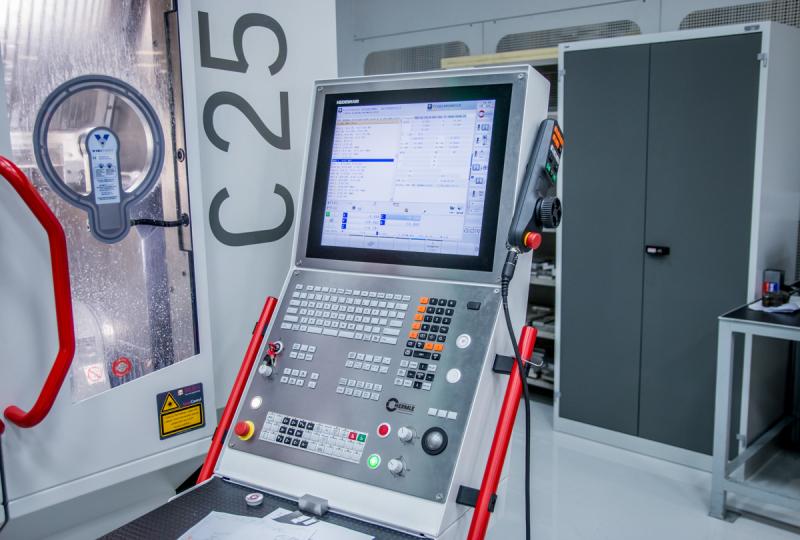

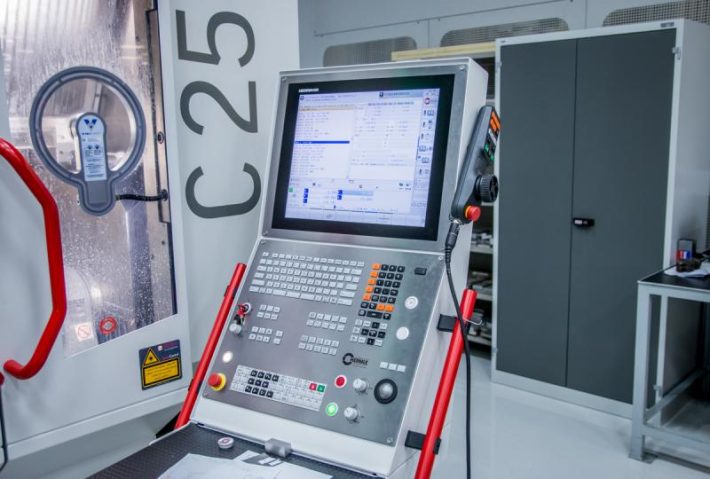

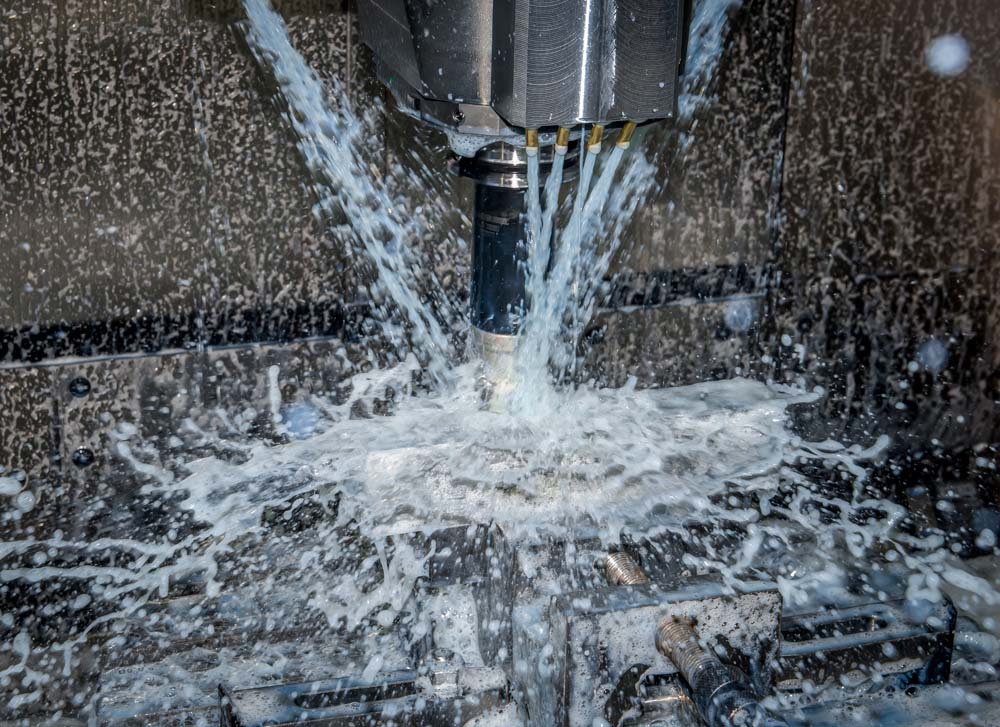

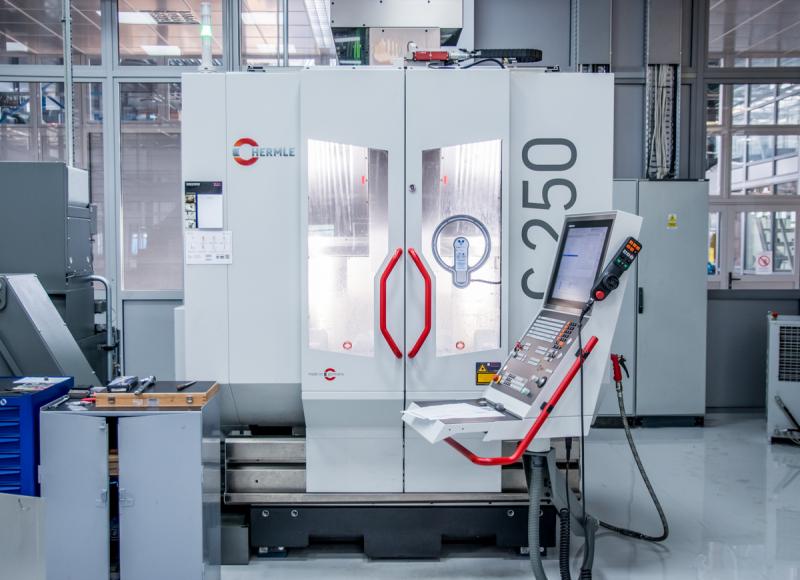

5-axis vertical machining centre – C250 HERMLE
Parameters
| Table dimensions | 450×360 mm |
| Max. table load | 300 kg |
| Dimensions: | |
| Travel on axis X | 600 mm |
| Travel on axis Y | 550 mm |
| Travel on axis Z | ±450 mm |
| Positioning accuracy | P≤0.008 mm |

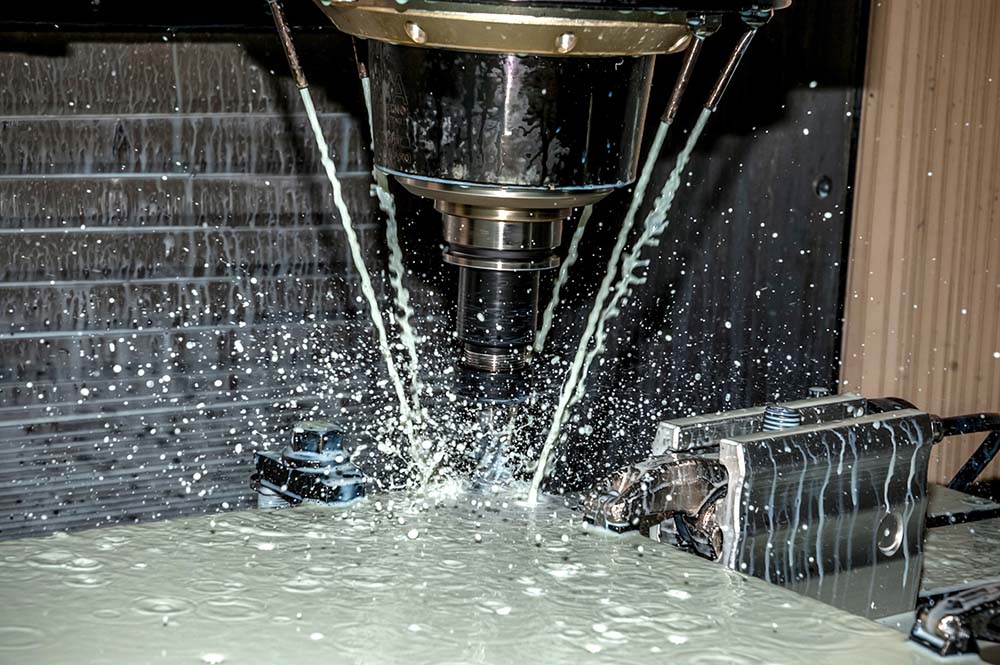

5-axis vertical machining centre, REMA CONTROL – Leonard T5 2.5
Parameters
| Table dimensions | 2720×820 mm |
| Rotating table dimensions: Built-in table diameter Rotational range of axis a Max. load of built-in table | 800 mm 360° 3000 kg |
| Dimensions: Travel on axis X Travel on axis Y Travel on axis Z | 2550 mm 1000 mm 1000 mm |
| Positioning accuracy | ±0.008 mm |
| Repeatability accuracy | ±0.005 mm |
| Rotational range of axis b | ±105° |

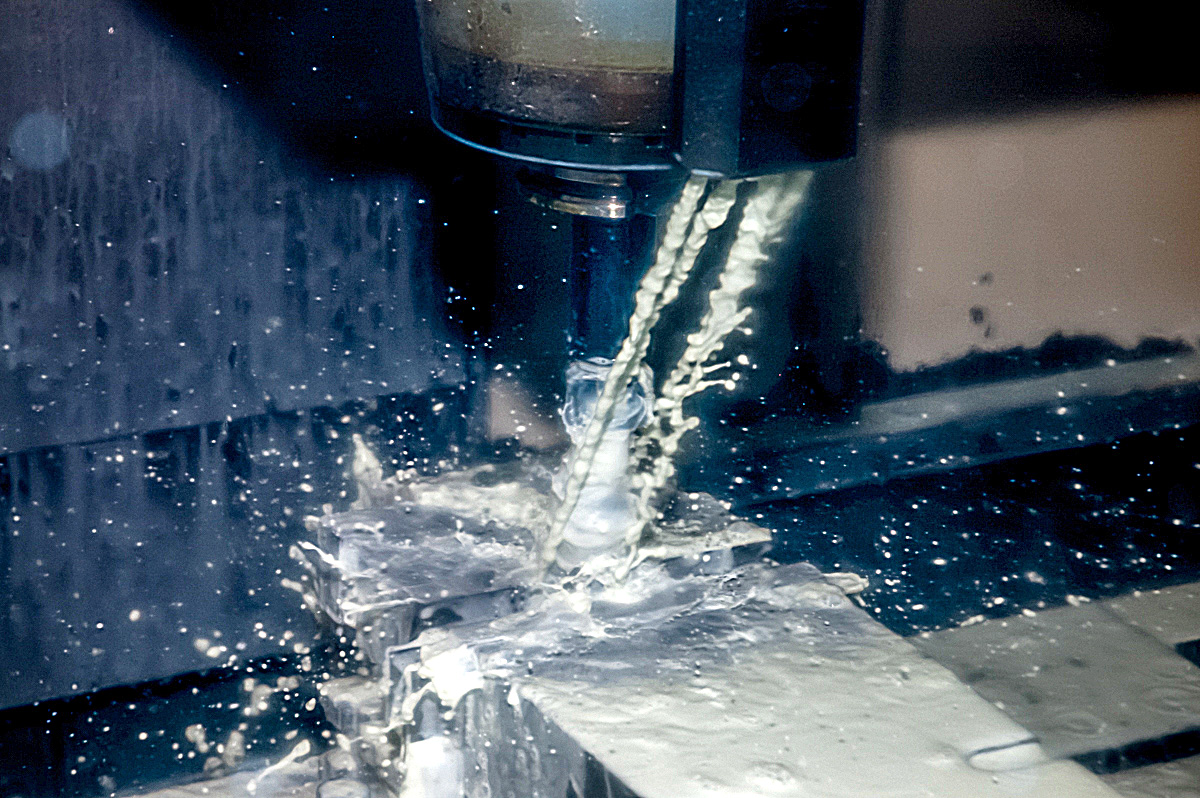

Vertical CNC machining centre – KOVOSVIT – MCV 750 QUICK
Parameters
| Table dimensions | 1000×500 mm |
| Max. table load | 400 kg |
| Dimensions: Travel on axis X Travel on axis Y Travel on axis Z | 750 mm 500 mm 500 mm |
| Positioning accuracy | ±0.003 mm |
| Coordinate setting accuracy | ±0.010 mm |
Waterjet cutting

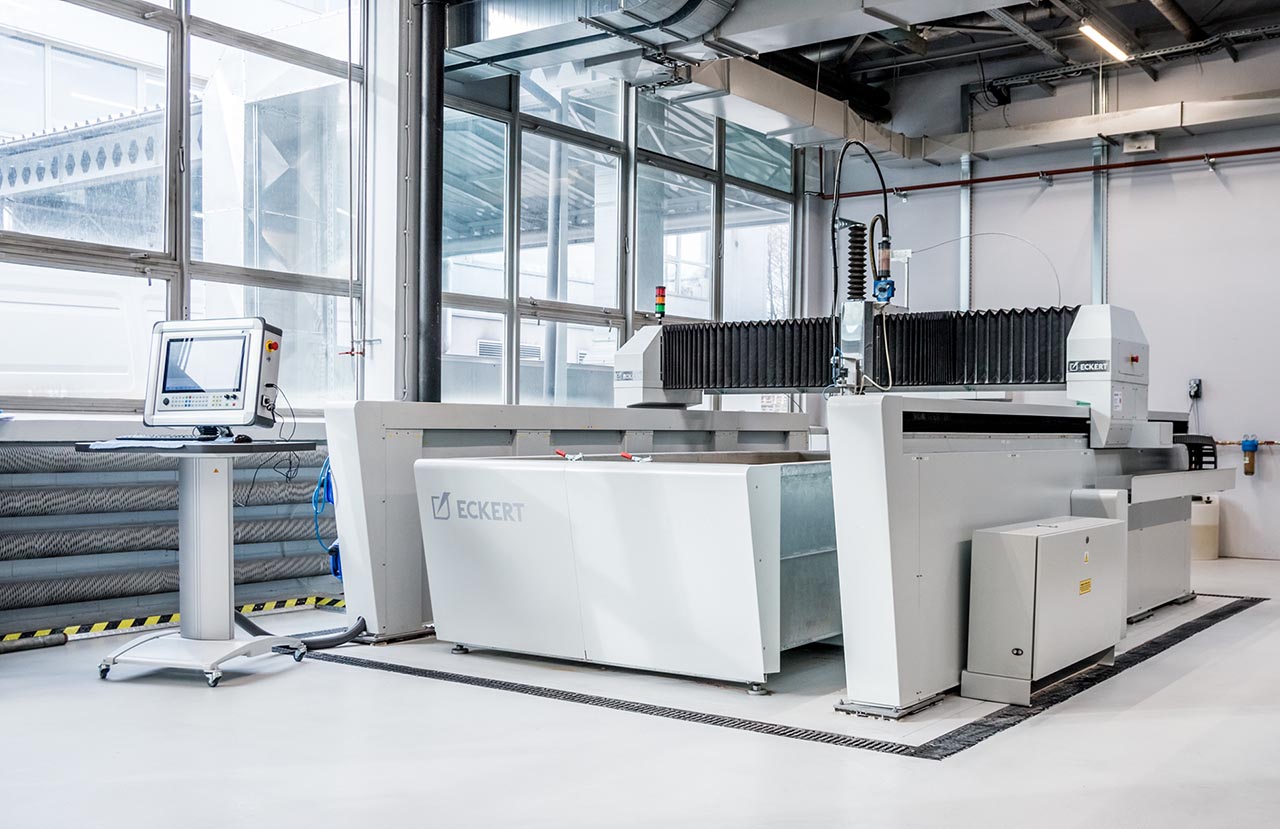

Opal Waterjet 2D cutting machine
Utilisation of waterjet cutting allows work with a wide variety of materials such as: stone, wood, various steel grades, non-ferrous metals, plastics etc.
Cutting is done using water and / or water and abrasive materials.
Parameters
- Dimensions of the table working surface: 1500 × 3000 mm
- Cutting thickness: 0.5-150 mm
Electrical discharge machining

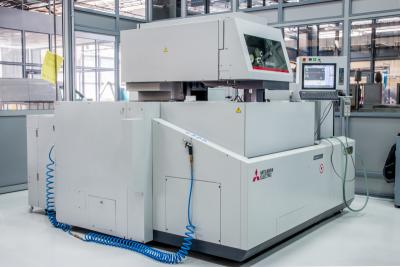

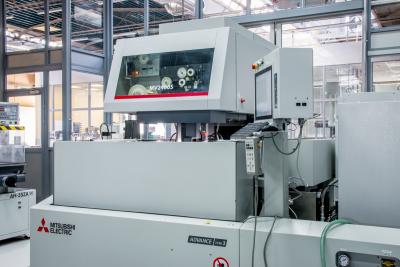

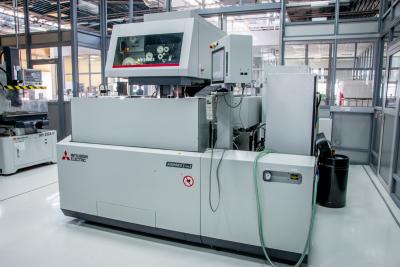

Wire cutter (EDM) – MITSUBISHI MV2400S Tubular
Parameters
| Travel on axes XYZ | 600×400×310 mm |
| Max. workpiece dimensions | 1050×820×305 mm |
| Max. workpiece weight | 1500 kg |
| Max. bath fill depth | 305 mm |
| Table dimensions | 840 × 560 mm |
| Max. cut angle | degrees ± 15°/ 260 mm degrees ± 30°/ 110 mm |
| Wire used | 0.10-0.30 mm |
| Automatic wire threading for wires of diameter | 0.10-0.30 mm |
| Max. weight of wire spool | 10 kg |
Turning

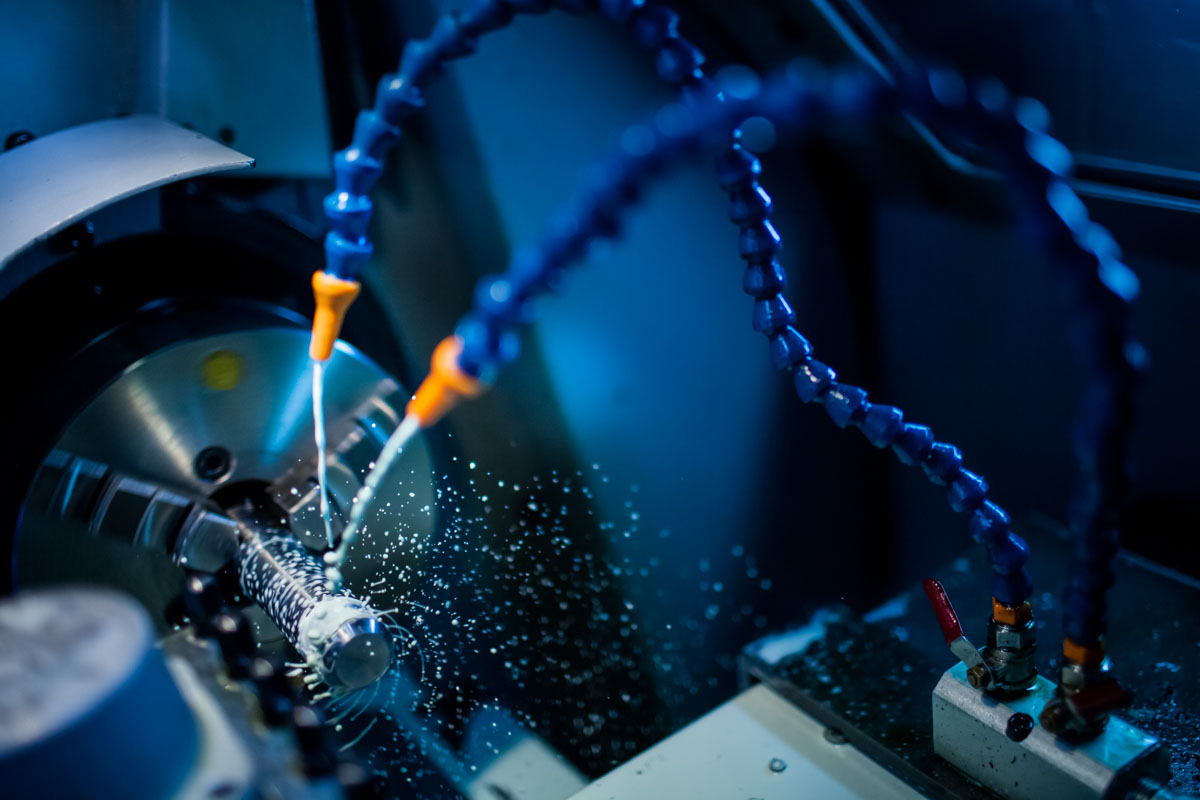

CNC lathe – XYZ SLX 355
Parameters
| Flight over bed | 360 mm |
| Flight over support | 225 mm |
| Bracket travel | 185 mm |
| Distance between centres | 1000 mm |
| Max. turning length | 900 mm |
| Spindle clearance | 52 mm |
| Spindle end size | D 1-6 camlock |
| Spindle taper | MT4 in sleeve |
| Spindle motor power | 5.75 KW (7.5 HP) |
| Spindle rotation | 50-4000 rpm – 2 scales |
| Tailstock travel | 150 mm |
| Tailstock spindle | MT4 |
| Tailstock diameter | 60 mm |
| Bed width | 300 mm |
| Machine dimensions | 2300×1250×1750 mm |

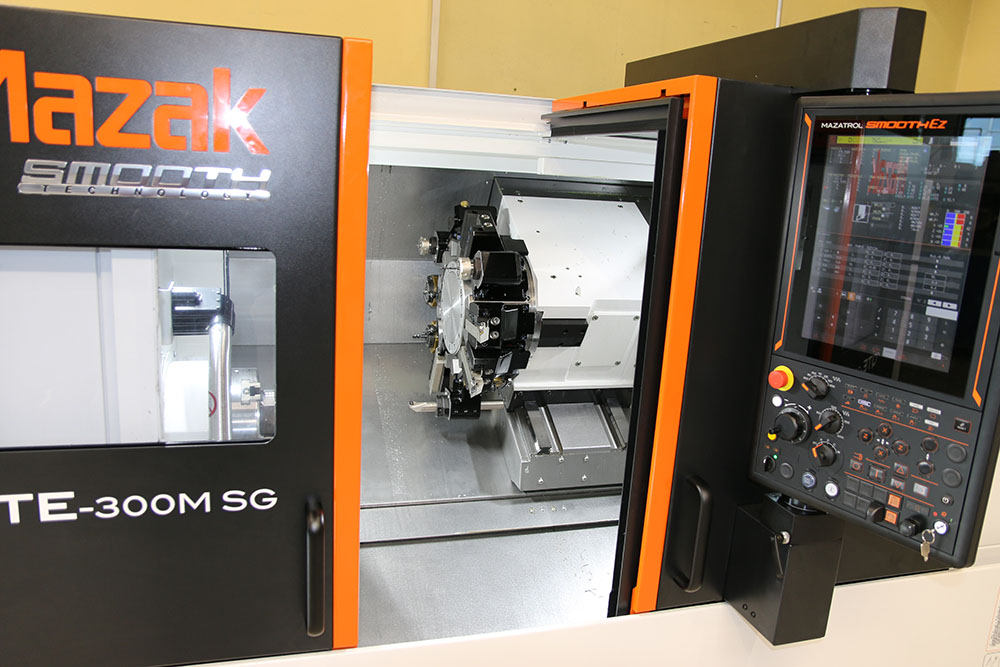

QTE-300M SG 1000U Lathe – Quick Turn Series Machining Centre
Parameters
| Specification | Bed length – 1000U mm | |
| Model with standard equipment 1000 mm | Value | |
| Capacity | Max. swing | 728 mm |
| Max. machining diameter | 340 mm | |
| Max. bar work capacity | 80 mm | |
| Main spindle | Chuck size | 10 inch |
| Max. speed | 4000 rpm | |
| Turret (upper) | Number of tools | 12 |
| Max. speed | 4500 rpm | |
| Feed axes | Travel (X axis) | 215 mm |
| Travel (Z axis) | 1155 mm |
Grinding

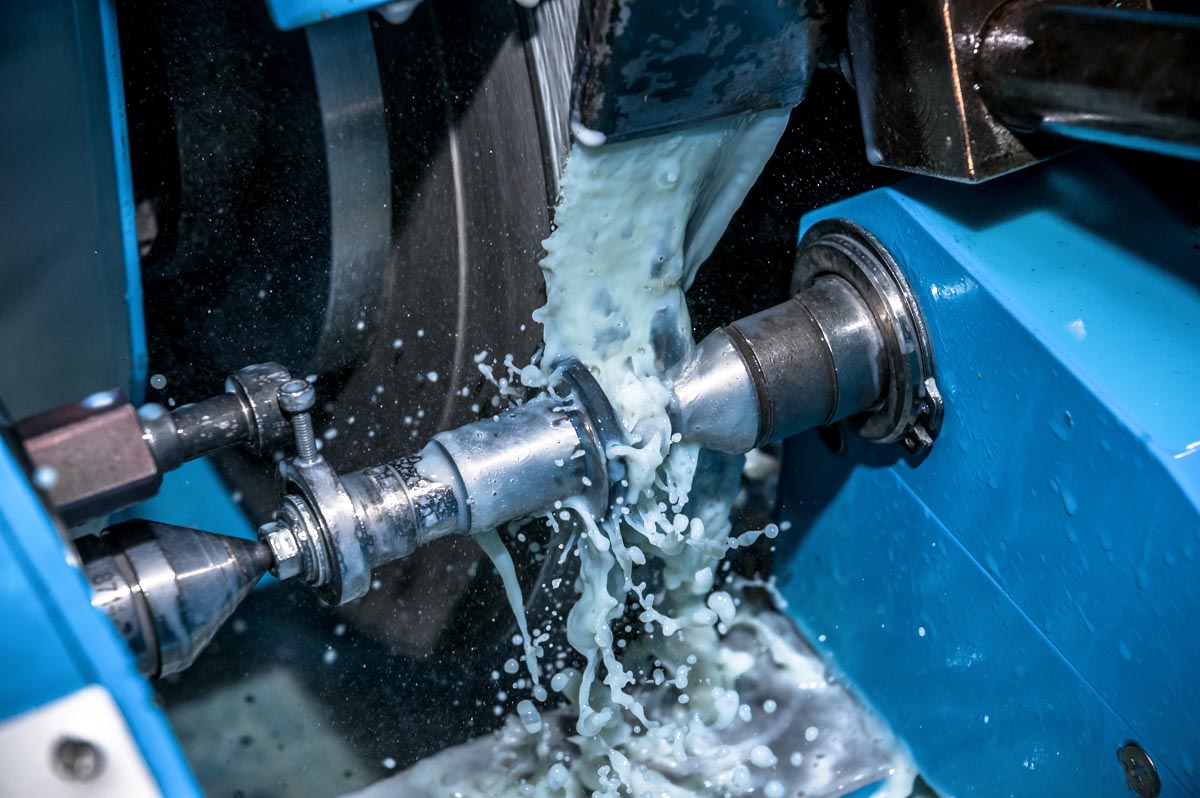

Grinder for shafts and openings
Parameters
| Workpiece diameter | 160 mm |
| Max. distance between centres | 320 mm |
| Max. clamp weight of the object being ground | 25 kg |
| Fixing bracket diameter | 100 mm |

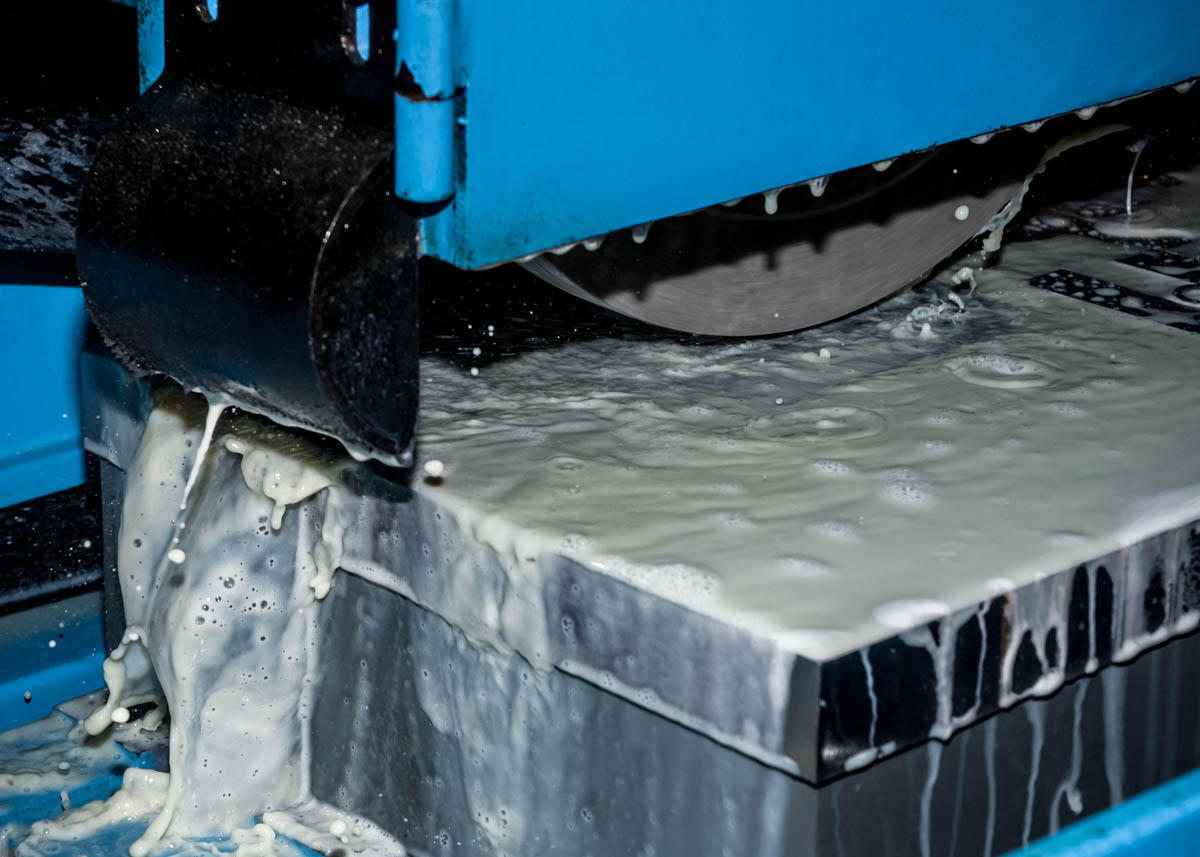

Flat surface grinder SGA 3063 AHD
Parameters
| Workpiece dimensions | 305×635×400 mm |
| Table dimensions | 305×635 mm |
| Speed of travel down the table | 7-25 m/min |
| Max. distance from table surface to spindle axis | 580 mm |
| Max. load (including fixing bracket) | 270 kg |
| Automatic intermittent travel | 0.1-8 mm |
| Quick table movement | 990 mm/min |
| Lateral movement of the table performed by means of a knob | 1 mm/rev |
| Grinding disk dimensions | 350×40×127 mm |
| Speed of the grinding wheel | 1450 (50 Hz) 1750 (60 Hz) rev/min |
| Quick vertical movement | 240 mm/min |
| Vertical movement performed by means of a knob | 1 mm/rev |
| Spindle motor power | 5.5 kW |
| Vertical movement motor power | 0.5 kW |
| Traversing motor power | 0.04 kW |
| Workspace dimensions | 2900×2200 mm |
